| Project name | Unit | Model |
| ZD7-1250IGBT | ||
| Input power | V/Hz | 3~380±15% 50/60 |
| Rated input capacity | kVA | 66 |
| Rated input current | A | 100 |
| Rated output current | A | 1250 |
| Rated output voltage | V | 44 |
| Rated no-load voltage | V | 76 |
| Rated duty cycle | - | 100% (40°C ) |
| Efficiency | - | 88% |
| Power factor | - | 0.93 |
| Output current adjustment range | A | 100-1250 |
| Flame depth adjustment stage | - | From shallow to deep: DC, A, B, C, D total of 5 levels (factory setting for you) |
| Power cooling method | - | air cooling |
| Insulation class | - | Class F |
| Enclosure rating | - | IP21S |

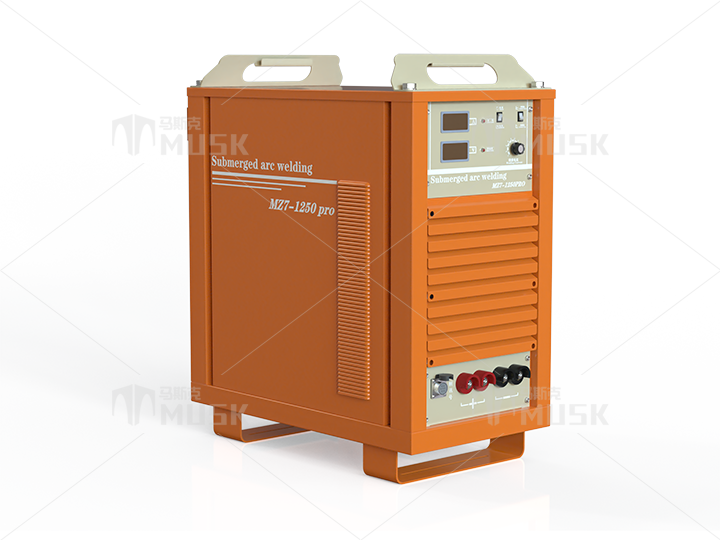

| Host size (length X width X height) | mm | 787*410*870 |
| Power Net Weight | kg | 100.3 |

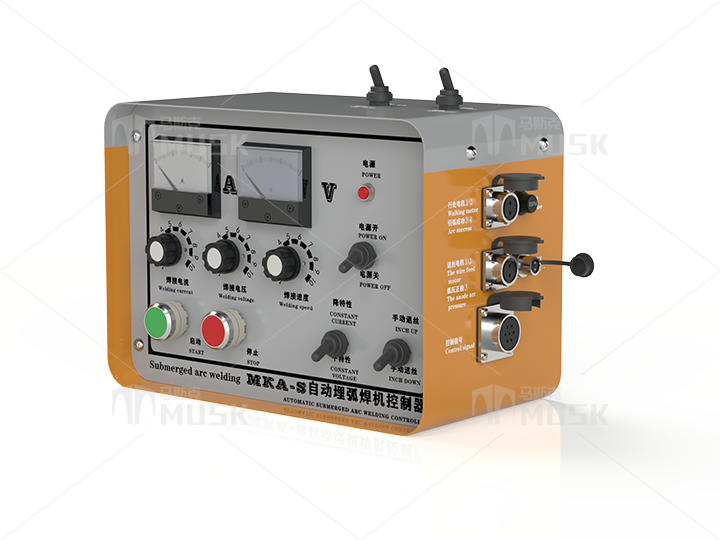

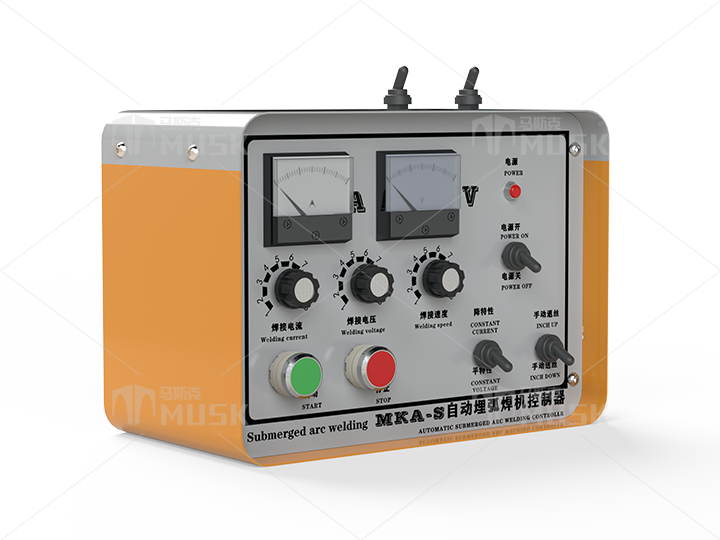

| Control box size (length X width X height) | mm | 312*170*230 |
| Control box weight | kg | 5.1 |
 |
 |
 |
